READY-LITE RXL33 SERIES

READY-LITE RXL33 SERIES



Product Code: TNB-RXL33SERIES
CALL FOR PRICING

Description Technical Specs

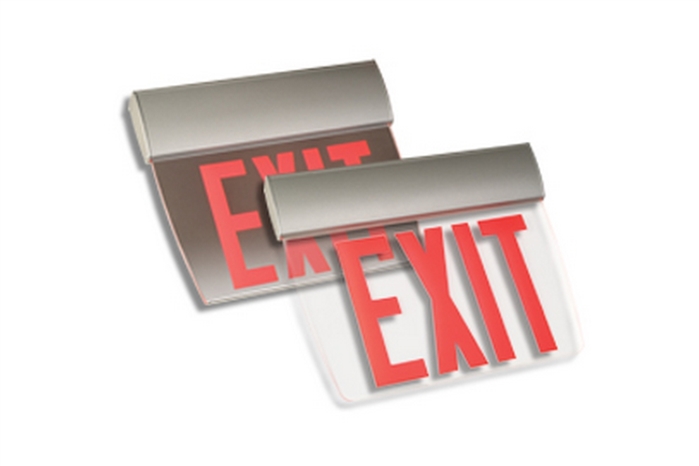

The Thomas & Betts Ready-Lite RXL33 Series LED slim-profile Edge-Lit Exit Signs operate with universal two-wire AC input voltage and universal two-wire DC input voltage. The housing assembly is fabricated of extruded aluminum with a textured finish and colour. The canopy is made of die-cast aluminum and allows for ceiling, wall, or end mount installation. The light source is ten (10) long-life LED's installed on a PCB strip, with the acrylic panel having a curved contour. The legend has 6" high, 3/4" stroke red letters on a clear background, and is equipped with stick-on translucent directional indicators, to be installed in the field as required by the code. The Exit Sign in a Self-powered configuration is equipped with sealed Nickel-Cadmium batteries and will provide a minimum of 90 minutes of emergency illumination upon AC failure.
Features
  • Extruded aluminum housing
  • Die-Cast aluminum E22 canopy
  • Universal surface mounting: wall, ceiling or end mount
  • Click-to-open housing door allows easy access to the panel and electrical wiring
  • Acrylic panel with curved contour
  • Legend with 6" letters and easy to add-on directional indicators
  • Simple, two-wire universal AC input (120V to 347VAC 50/60Hz) prevents installation errors
  • Simple, two-wire universal DC input: 6V to 24VDC
  • Energy efficient power consumption: less than 1.5W in AC or DC mode
  • Meets or exceeds CSA 22.2 No.141-10
