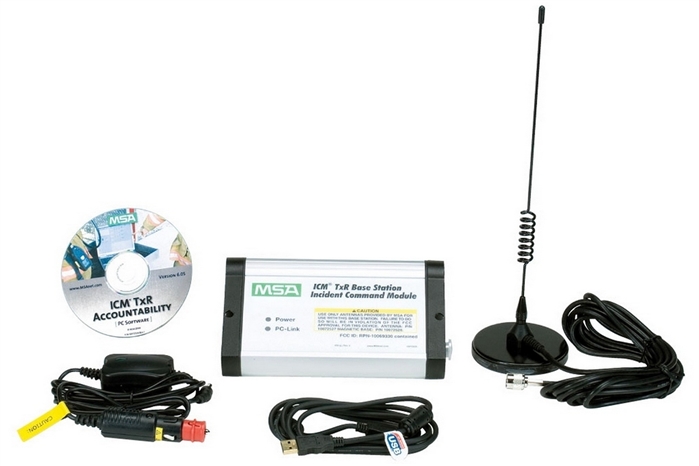

Accountability is key to every firefighter's safety on a fire scene. You simply can't afford not to have the very best telemetry technology available. MSA's Accountability System technology combines software with a high-performance radio module and the field-proven technology of MSA's ICM TxR Integrated PASS. Add the Accountability System to MSA's FireHawk M7 Air Mask, and you'll be wearing the best integrated SCBA accountability system available. Each MSA base station can monitor up to 50 firefighters; multiple base stations can be used with a single computer. The Accountability System transmits firefighter name, team assignment, cylinder pressure, service-time remaining, PASS alarms (motion or manual), thermal alarms, battery status,radio connectivity, and evacuation acknowledgement to incident command.
  • A fireground management system
  • Personalized ID tags for each firefighter tell incident command exactly who is on scene
  • An integrated PAR (personnel accountability report) timer helps to manage each team's radio calls
  • Incident command can manually add firefighters who are not wearing an SCBA to the system, as well as aid firefighters
  • Intuitive and easy to use
  • Assign firefighters to teams by clicking on a firefighter's icon and dragging it to another team
  • Critical information is available at a screen glance due to the large number of firefighters whose information can be displayed and the information's pictorial format
  • Receive both audible and visual critical event indications such as PASS or low-pressure alarms
  • A two-way evacuation feature
  • Incident command is assured that firefighters receive all evacuation messages. When incident command transmits the alarm through the FireHawk M7 Air Mask PASS device, they'll know that the firefighter received it, as the unit automatically sends a confirmation message to the base station
  • By simply pressing a button on his/her own FireHawk M7 Air Mask PASS device, a firefighter sends manual confirmation to acknowledge receipt of the evacuation message
  • Firefighters will hear the evacuation alarm on their PASS devices
  • Visual HUD indications and FireHawk M7 PASS device icons alerts firefighters that it is time to evacuate
  • An individual firefighter, a team of firefighters, or all firefighters can be evacuated
  • Although some concrete and steel commercial structures can challenge any radio signal, Accountability System coverage with radio technology provides highly reliable performance for a one-mile line-of-sight range
  • Spread-spectrum design helps to prevent interference with other high-band radio frequency equipment
  • For additional safety, both base station and firefighter modules have an icon message to inform users should a firefighter fall out of radio signal range, allowing for alternate accountability measures such as voice radio contact with teammates to be taken
